Use of Various Aluminium Alloys

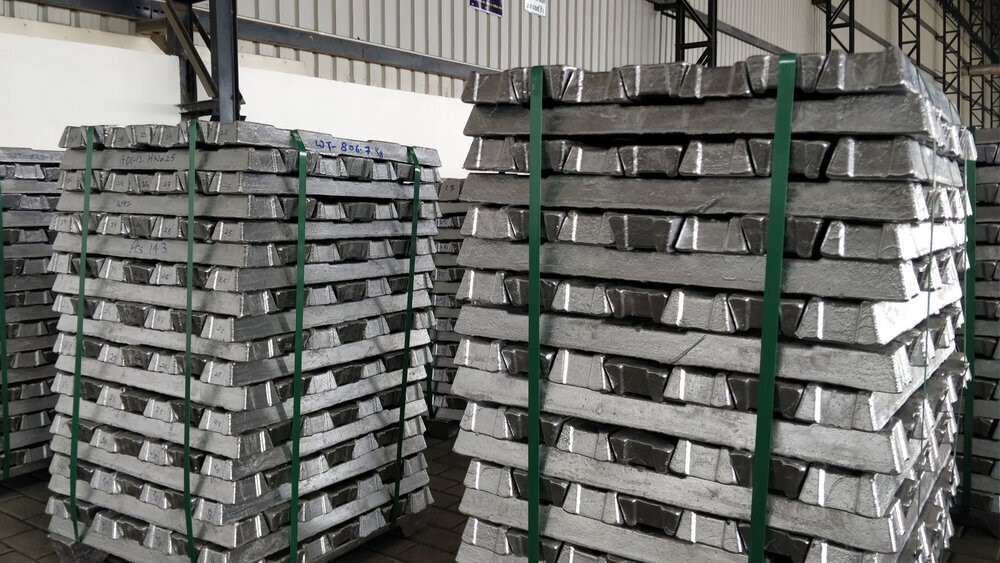

Aluminium ingots are used in a wide range of industries. Among the most widespread uses of the adc6 aluminium alloy is in the manufacturing sector, where they are employed in the production of machinery, computers, automobiles, and other parts and components. Additionally, they can be utilized in the building sector to create doorways, siding, roofing materials, and window frames.

JIS Standard :

Chemical Composition ( Mass % )

Search
Alloy	Cu	Si	Mg	Zn	Fe	Mn	Cr	Ni	Sn	Pb	Ti	Al
AC2B	2.0 to 4.0	5.0 to 7.0	0.5 max	1.0 max	0.8 max	0.5 max	0.20 max	0.35 max	0.10 max	0.20 max	0.20 max	Balance
AC4B	2.0 to 4.0	7.0 to 10.0	0.5 max	1.0 max	0.8 max	0.5 max	0.20 max	0.35 max	0.10 max	0.20 max	0.20 max	Balance
ADC1	1.0 max	11.0 to 13.0	0.3 max	0.5 max	1.3 max	0.3 max	–	0.5 max	0.1 max	0.20 max	0.30 max	Balance
ADC10	2.0 to 4.0	7.5 to 9.5	0.3 max	1.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC10Z	2.0 to 4.0	7.5 to 9.5	0.3 max	3.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC12	1.5 to 3.5	9.6 to 12.0	0.3 max	1.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC12Z	1.5 to 3.5	9.6 to 12.0	0.3 max	3.0 max	1.3 max	0.5 max	-	0.5 max	0.2 max	0.20 max	0.30 max	Balance
ADC14	4.0 to 5.0	16.0 to 18.0	0.45 to 0.65	1.5 max	1.3 max	0.5 max	-	0.3 max	0.3 max	0.20 max	0.30 max	Balance
ADC3	0.6 max	9.0 to 11.0	0.4 to 0.6	0.5 max	1.3 max	0.3 max	-	0.5 max	0.1 max	0.15 max	0.30 max	Balance
ADC5	0.2 max	0.3 max	4.0 to 8.5	0.1 max	1.8 max	0.3 max	-	0.1 max	0.1 max	0.1 max	0.20 max	Balance
ADC6	0.1 max	1.0 max	2.5 to 4.0	0.4 max	0.8 max	0.4 to 0.6	-	0.1 max	0.1 max	0.1 max	0.20 max	Balance
AlSi10Mg	0.08 max	9.0 to 11.0	0.25 to 0.45	0.10 max	0.45 max	0.45 max	-	0.05 max	0.05 max	0.05 max	0.15 max	Balance
AlSi12Cu1(Fe)	0.7 to 1.2	10.5 to 13.5	0.35 max	0.55 max	1.3 max	0.55 max	0.10 max	0.30 max	0.10 max	0.20 max	0.20 max	Balance
AlSi9Cu1Mg	0.8 to 1.3	8.3 to 9.7	0.30 to 0.65	0.80 max	0.7 max	0.15 to 0.55	-	0.20 max	0.10 max	0.10 max	0.10 to 0.18	Balance
AlSi9Cu3(Fe)	2.0 to 4.0	8.0 to 11.0	0.05 to 0.55	3.0 max	1.3 max	0.55 max	0.15 max	0.55 max	0.25 max	0.35 max	0.25 max	Balance
AlSi9Mg	0.03 max	9.0 to 10.0	0.30 to 0.45	0.07 max	0.15 max	0.10 max	-	-	-	-	0.15 max	Balance

BS Standard :

Chemical Composition ( Mass % )

Search
Alloy	Cu	Si	Mg	Zn	Fe	Mn	Cr	Ni	Sn	Pb	Ti	Al
LM6	0.1 max.	10.0 - 13.0	0.1 max.	0.1 max.	0.6 max.	0.5 max.		0.1 max.	0.05 max.	0.1 max.	0.2 max.	Remainder
LM10	0.1 max.	0.25 max.	9.50 - 11.0	0.1 max.	0.35 max.	0.1 max.		0.1 max.	0.05 max.	0.05 max.	0.2 max.	Remainder
LM4	2.0 - 4.0	4.0 - 6.0	0.2 max.	0.5 max.	1.0 max.	0.2 - 0.6		0.3 max.	0.1 max.	0.1 max.	0.2 max.	Remainder
LM24	3.0 - 4.0	7.5 - 9.5	0.3 max.	3.0 max.	1.3 max.	0.5 max.		0.5 max.	0.2 max.	0.3 max.	0.2 max.	Remainder
LM26	2.0 - 4.0	8.5 - 10.5	0.5 - 1.5	1.0 max.	1.2 max.	0.5 max.		1.0 max.	0.1 max.	0.1 max.	0.2 max.	Remainder
LM13	0.7 - 1.5	10.5 - 13.0	0.8 - 1.5	0.5 max.	1.0 max.	0.5 max.		1.5 max.	0.1 max.	0.1 max.	0.2 max.	Remainder
